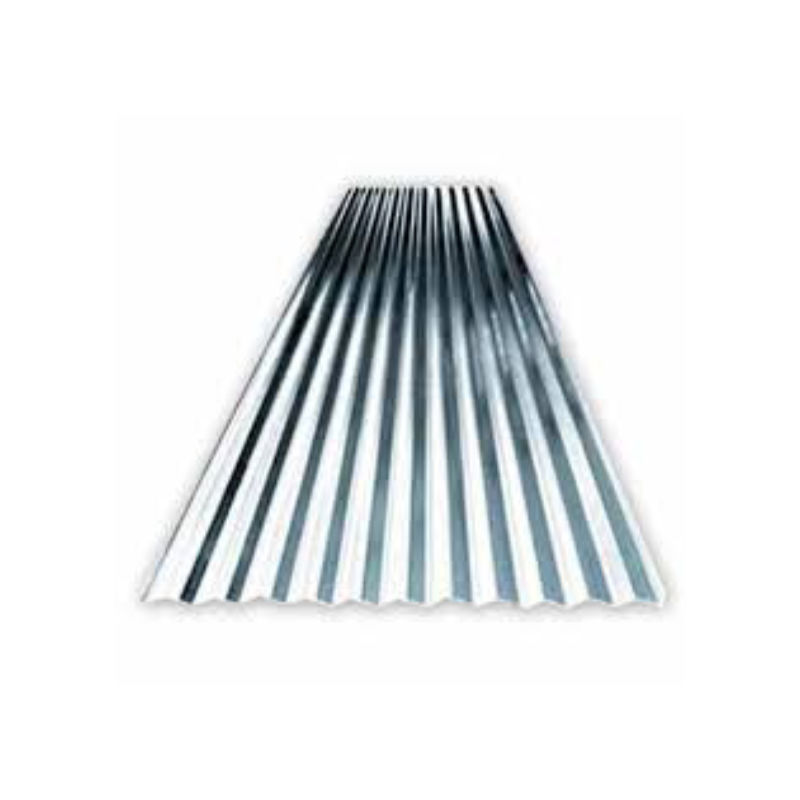

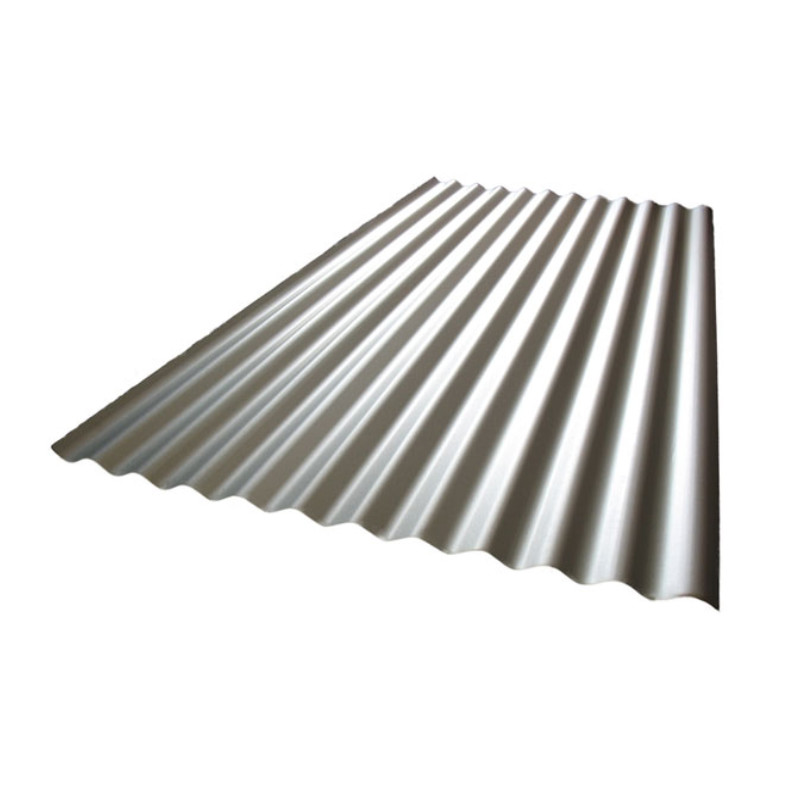

Circular Corrugated Profile is linear sinusoidal in shape. This traditional profile is the most widely-used type of corrugated sheet. They have a classic look, serving all kinds of basic roofing needs.
Pre-painted sheets in a variety of colors are also available, giving them additional aesthetic value.
Circular Corrugated Sheets are a perfect choice for general roofing and walling applications.
Per unit weight may increase up to 3% in case of color coated sheets.
| Available Length | 1500 mm to 6500 mm |
| Available Width | 1250 mm and 950 mm |
| Temper | H18 |
| Available Alloys | AA3003, AA3105, AA8011 |
| Min UTS | 200, 195, 175 MPa |
| Max UTS | 240 MPa |
| Yield Stress | 180,160,140 MPa |
| Minimum Order Quantity | Negotiable |
| Thickness (mm) | Weight of Sheet (Kg) | ||
| Per Sq. Mtrs Sheet | Per Mtr Length | ||
| 16/75 (1250 mm) | 12/75 (950 mm) | ||
| 1.22 | 3.72 | 4.71 | 3.66 |
| 0.91 | 2.77 | 3.51 | 2.68 |
| 0.71 | 2.14 | 2.74 | 2.09 |
| 0.65 | 1.98 | 2.47 | 1.89 |
| 0.56 | 1.68 | 2.15 | 1.65 |
| 0.5 | 1.52 | 1.91 | 1.43 |
| 0.35 | 1.07 | 1.32 | 1.02 |
We deal in following variants-Everlast Super Aluminium Roofing Sheet, Everlast Roofing Structural, Tiled Profile Sheet, Troughed Trapezoidal Sheets, Modern Troughed Sheets, Stucco-Embossed Aluminium Sheet.
