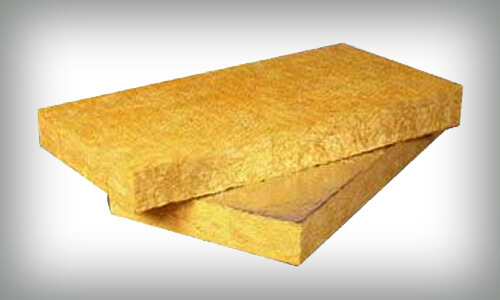

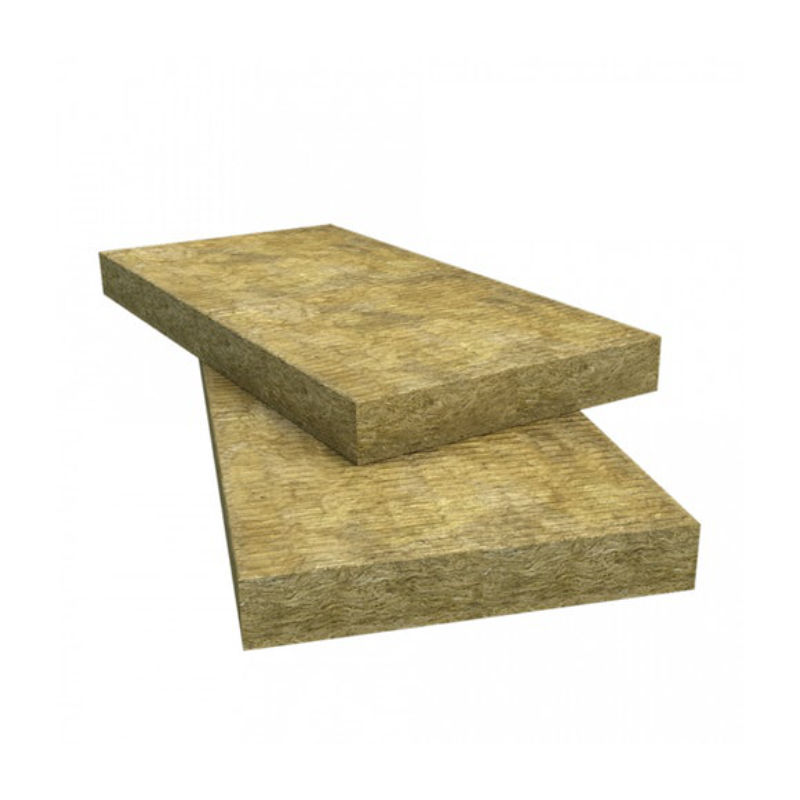

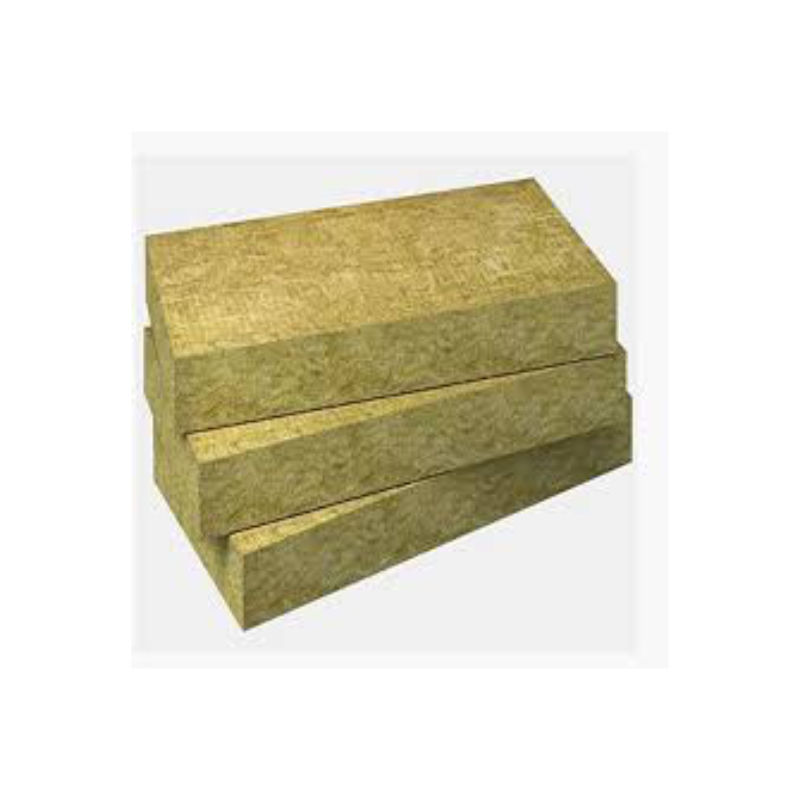

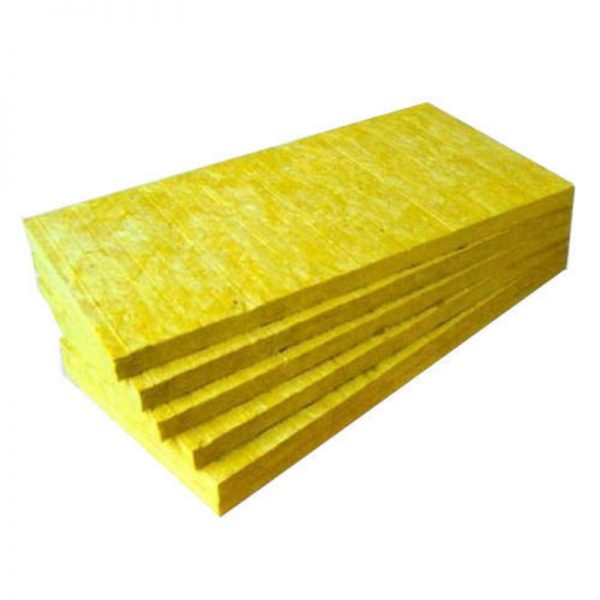

Resin Bonded Slab

Product Details :

‘DHANROCK‘ Resin Bonded Slabs (RB) is made of fine fibers spun from selected minerals melted at high temperature and bonded with a thermosetting resin. DHANROCK Resin Bonded Slabs provide the best Thermal, Fire & Acoustic Insulation properties. conforming to standards IS: 8183:93, ASTM C 612 and BS-3958B-5.

Have Questions?

‘DHANROCK’ Resin Bonded Slabs are designed for thermal and acoustic insulation of flat surfaces or slightly curved surfaces operating at temperatures up to 750o C. The Slabs can be used in cold insulation up to -50oC temperature . It can be used Hot / Thermal Insulation in ovens, vessels, tanks, Furnace, Boiler, etc. The Slabs can be used in Acoustic applications Sandwich panel, ship deck, AC duct, False ceiling overlay. Rockwool RB slab is used in DG canopy and compression canopy.

As per IS 8183:1993 / Equivalent international standards.

PARAMETERS	STANDARD DIMENSIONS
Length (mm)	1000
Width (mm)	500
Density (kg/m3)	48, 64, 96, 144, 150, 160
Thickness (mm)	25-100

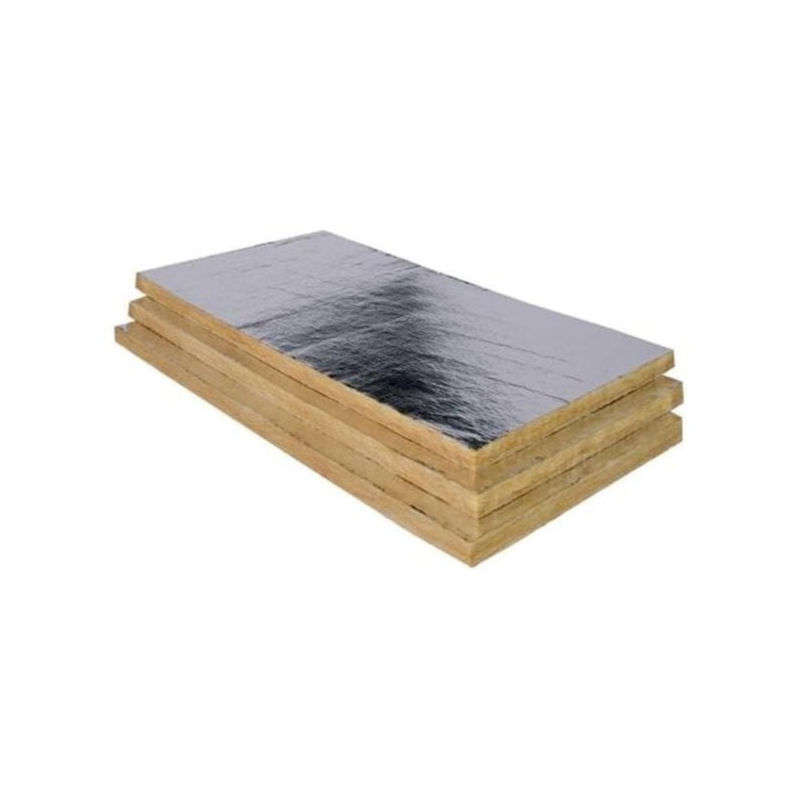

Facing optional ‘DHANROCK’ Resin Bonded Slabs are available with Aluminium Foil (ALF / FSK) / BGT and White Tissue on one or both sides as per requirement of client.
* Non-standard sizes and facing are available on request
* Samples available on request

Low ‘K’ value, Fire resistant, odourless, flexible, moisture and corrosion resistance, Service Temperature 750° C

Thermal insulation

Acoustic protection

Fire protection

Environmental sustainability

Value for money - more cost effective than any other material available

Versatility of form - roll, batt, mattress or blown, a form to suit any project
